WR300NSI Portable Wireless-N Repeater
Diamond Multimedia WR300NSI User Manual
Page 2 of 31
User Manual
Table of Contents About the Device .................................................... 4 Minimum System Requirements ................................. 5 Package Contents ............................................ 5 Device Overview ............................................. 6 Front Panel ........................................................ 6 Top Panel.......................................................... 7 Bottom Panel ...................................................... 8 Accessing the User Interface ........................................... 9 Quick Connect ............................................... 9 Setup ..................................................... 10 Wireless ................................................... 11 Wireless Basic Settings ..............................................11 Wireless Security Settings ...........................................12 MAC Filter Settings.................................................13 System .................................................... 15 Device Information .................................................15 LAN Configuration ..................................................16 Configuration Settings ..............................................16 Firmware Upgrade .................................................17 System Password ..................................................17 Configuring the Device ............................................... 19 Wireless Repeater ........................................... 20 Wireless Access Point ........................................ 21 Wireless Bridge............................................. 22 Configure WR300NSI to Wireless Router via WPS .........................24 FCC Notice ......................................................... 29
Page 3 of 31
Diamond Multimedia WR300NSI User Manual
About the Device Diamond Multimedia WR300NSI is a Wall-plugged 300Mbps Wireless-N Repeater, which supports wireless 8 0 2 . 1 1 b /g/n, and one 10/100 Base-T Ethernet port. Repeat and Ex Extend the WiFi Network WR300NSI supports robust 802.11n technology with up to 300Mbps data transfer rate. The extender can take an existing 802.11n wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach. It eliminates the cable wires while providing the same reliable network connection. It can repeat and extend the wireless signal from virtually any 802.11n wireless router or access point that is launched on the market. It is backwards compatible with the 802.11b/g router or access point. Make Wired Network WiFi Ready The extender is equipped with 1 x 10/100M Auto MDI/MDIX LAN port that can be used to connect to an existing wired network to serve as a wireless interface. It can also be used to configure the extender via its web-based GUI, or upgrade the firmware. MIMO Technology The device is designed with MIMO technology, which successfully reduces “dead spot”, and extends network coverage within a home or in the building. Advanced Security WR300NSI features with 64/128-bit WEP encryption and WIFI Protected Access (WPA), WPA2 to ensure the network security and prevent unauthorized access to you network. Port ortable without the Need of Externa xternal Power Supply The device is easy to setup. It is portable with no need of any external power adaptor. It comes with the embedded power supply and power plug, so that users can just plug the device into a power socket.
Page 4 of 31
User Manual
Minimum System Requirements Your computer must meet the following minimum requirements. 0001 Any operating system can be used 0001 Web Browser 0001 233MHz processor 0001 Ethernet network adapter 0001 Or Wireless network adapter
Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents may vary for different models. 0001 0001 0001 0001
WR300NSI Ethernet cable Easy Start Guide Resource CD
Page 5 of 31
Diamond Multimedia WR300NSI User Manual
Device Overview
Front Panel
Page 6 of 31
User Manual
LABEL
STATE
DESCRIPTION
3 BARS
Connected
95% and above RSSI (Excellent)
2 BARS
Connected
55-94% RSSI (Recommended)
1 BAR
Connected
10-54% RSSI (Weak)
LED RRSI

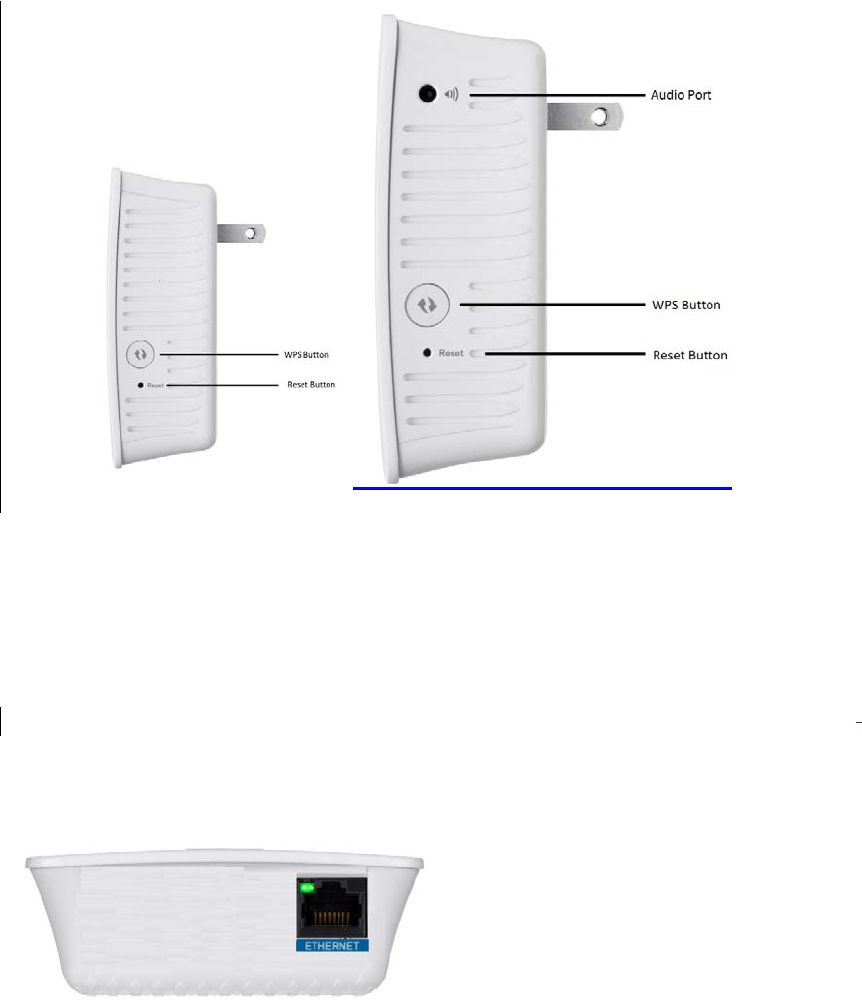

Top Panel
LABEL WPS BUTTON
DESCRIPTION Connect WR300NSI to any WPS capable devices
Page 7 of 31
Diamond Multimedia WR300NSI User Manual
Bottom Panel
LABEL
DESCRIPTION
RESET
Press the Reset button for 5 seconds to restore the device to default factory settings
ETHERNET PORT
Connect to computers/Ethernet devices
Page 8 of 31
User Manual
Accessing the User Interface To access the User Interface open a Web browser (Ex: Internet Explorer, Firefox or G.chrome) and type http://10.0.10.254 in the address bar and press enter.
Quick Connect Press Quick Connect icon to scan for available wireless within the area.
Page 9 of 31
Diamond Multimedia WR300NSI User Manual
Setup
Mode of Operation Repeater Configure your device as a wireless repeater to extend the wireless coverage of your wireless router. Access Point Configure your device as an access point to provide wireless network accessibility to a non wireless network Bridge Configure your device as a Bridge to act as wireless client to your network device. In this mode you can convert wireless signal to wired Ethernet for devices not supporting wireless connections.
SSID Here you can set the name of your wireless network. Select the option Disable on Broadcast SSID allow you to hide the wireless network name.
Security Mode Select from different encryption type on the list to be used to provide security to your wireless network from unauthorized users. Select WEP HEX 64bit – uses 10 characters length of password from A-F and numbers from 0-9 128bit- uses 26 characters length of password from A-F and numbers from 0-9
Page 10 of 31
User Manual
ASCII 64bit – uses 5 characters alpha numeric password (A-Z and 0-9) 128bit – uses 13 characters length of password from (A-Z and 0-9) WPA Uses strong encryption, some legacy devices may not be able to associate with this type of encryption WPA2 Use this encryption for best security, some legacy device may not associate with this type of encryption WPA/WPA2 PSK Use a balance of strong security and best compatibility for new and legacy devices.
Wireless Wireless Basic Settings
Enable Wireless Enable or Disable wireless capability Broadcast SSID Set option to disable to hide your wireless network (Enable by default)
Page 11 of 31
Diamond Multimedia WR300NSI User Manual
SSID Here you can enter the name of your wifi network Wireless Mode This option allows you to select the type of wireless standard you want to allow to connect to your wireless network. Channel Channel Change your wireless channel when you are getting poor reception. Choose the least channel used in your area for better performance (Only applicable for AP mode) Channel Bandwidth Here you can set your Channel Bandwidth to 20MHz and 20/40MHz(Auto) HT Data Data Rate and HT Guard Interval These options are recommended to be set to Auto for maximum efficiency.
Wireless Security Settings
Security Mode Select the type of encryption you want for your wireless network WPS Set this option to enable or disable WPS (Wifi Protected Setup) feature on this device Enrollee PIN Enter this PIN to wireless client that will be connecting to WR300NSI repeater to automatically configure the wireless device. Registrar PIN
Page 12 of 31
User Manual
Here you can enter the WPS-PIN of wireless clients and click apply for the WR300NSI to allow access and configure your wireless client device automatically Note: WPS will work only for WPA-PSK, WPA2-PSK and WPA/WPA2 encryption. Wireless client should support WPS feature to use this option.
MAC Filter Settings This feature will provide additional protection to your wireless network. It allows or denies wireless clients from accessing through the WR300NSI with the use of the MAC address which is unique for every network devices.
Policy Disable Disable Use this option to disable or disregard the list of MAC address from blocking or allowing access to the wireless network. Allow Allow the list of MAC address from accessing the wireless network Deny Deny the list of MAC address form accessing the wireless network
Page 13 of 31
Diamond Multimedia WR300NSI User Manual
MAC Address Type the MAC address of the wireless client here and press
to add on the list.
Removing MAC address from the list Press this icon to remove the MAC address from the list
Where can I find the MAC address of my wireless wireless client? On the Command Prompt type ipconfig/all to show all the network adapter(s) that are available.
Page 14 of 31
User Manual
System Device Information
Firmware Version Shows the current firmware version of the device Build Date Shows the date when firmware is created Serial Number Shows the device’s serial no ETH/Bridge and Wireless MAC address Shows the MAC address of the different Interface Wireless Status Shows the wireless device’s wireless status
Page 15 of 31
Diamond Multimedia WR300NSI User Manual
LAN Configuration
Device IP address Shows the device’s current IP address Note: Change this IP address if you are using two WR300NSI on the same network to avoid IP address conflict within your network. You may configure the 2nd unit with IP address ex: 10.0.10.253
Configuration Settings
Backup Settings Settings Allow you to save the current configuration of WR300NSI. Default file name for the backup file will be “RT2880_Settings.dat”. Click Apply to start saving your configuration.
Page 16 of 31
User Manual
Update Here you can load the saved configuration of your WR300NSI. Click browse and load the saved settings by clicking on the apply button. Restore Click on the apply button to reset the unit back to its factory settings. Unsaved information will be lost.
Firmware Upgrade This option allows you to update the firmware of your device for future changes and enhancement.
Updating the firmware a. b. c. d.
Connect an Ethernet cable between WR300NSI and computer Open web browser and type http://10.0.10.254 to access the user interface Click on Setup and select firmware under the sub menu Click on the Browse button and locate and open the firmware for WR300NSI and click Apply to start the update.
Note: It is recommended to only use firmware which is officially release by Diamond Multimedia, Using third party firmware will void the warranty of the device.
System Password Set a password on web user interface to prevent other users from getting access to the web UI and avoid unwanted changes from your settings.
Page 17 of 31
Diamond Multimedia WR300NSI User Manual
System Password Type your password and click on apply to activate this feature. To disable, simply remove the password and click apply to save your settings. Note: forgotten password will not be recovered. Reset the device pressing the reset button found beside the Ethernet port of WR300NSI.
Page 18 of 31
User Manual
Configuring the Device Placement of the Wireless Repeater is crucial to get the best possible results for extending your existing wireless signal. It is ideal for the wireless repeater to be placed in a location where it can receive good wireless signal from the wireless router/AP so as to avoid disconnection and packet loss.
LED smart indicator determines the signal strength from your wireless router. Wireless reception and throughput may vary according to the number of wireless clients that are in use at the same time, other nearby wireless devices, structure type, building materials and other interference present.
Page 19 of 31
Diamond Multimedia WR300NSI User Manual
Wireless Repeater a. Plug your WR300NSI to a power outlet, switch it ON and connect the Ethernet cable between your WR300NSI and Computer b. Launch web browser and you will be directed to the User Interface (In case it does not open type 10.0.10.254 and hit enter)
c. Select your SSID (wireless network/wifi name) from the list and click connect
Page 20 of 31
User Manual
d. Type the password for the wireless network of your router and click apply. The WR300NSI will reboot and will redirect to the user interface with the following status.
e. Disconnect the Ethernet cable from WR300NSI and computer then place the device at the location, where it can get sufficient reception from your wireless router.
SETUP DIAGRAM (REPEATER)
Wireless Access Point Setup your WR300NSI as an access point to provide wireless network to router that doesn’t have wireless feature.
Page 21 of 31
Diamond Multimedia WR300NSI User Manual
a. b. c.
Plug your WR300NSI to a power outlet Connect an Ethernet cable between the WR300NSI and Computer Launch web browser and you will be directed to the User Interface
d. . f. g.
Go to Setup, set Mode of Operation to Access Point Type the name of your wireless network under SSID Type the password of the wireless network and click apply Connect the WR300NSI to router’s LAN port after the settings have been saved.
SETUP DIAGRAM (AP)
Wireless Bridge Connect wired devices to your wireless network by connecting an Ethernet cable from a wired device, such as a Desktop PC, Game Console or Internet-ready LCD TV, to the Ethernet port of the WL556E. Page 22 of 31
User Manual
a. Plug in and turn ON your WR300NSI b. Connect the Ethernet cable between your computer and WR300NSI c. Launch a web browser. You will be directed to the user interface
d. Click on Setup and set Mode of Operation to Bridge e. Type the name of your wireless network for the SSID f. Enter the channel and password of your wireless network and click apply Note: SSID, Security mode, password/passphrase and wireless channel must match to router’s wireless settings.
SETUP DIAGRAM (BRIDGE)
Modem
WR300NSI Wireless Router
WPS WPS or Wifi Protected Setup makes it easier for you to connect your WR300NSI to your wireless router and WR300NSI to your wireless devices with a push of a button. (WPS
Page 23 of 31
Diamond Multimedia WR300NSI User Manual
feature must be enabled and must be supported on the wireless router and wireless devices that will be connected to WR300NSI)
Configure WR300NSI to Wireless Router via WPS a. Press the WPS button of WR300NSI for 5 seconds b. Press the WPS button on your router for 2 seconds within 2 minutes time
Page 24 of 31
User Manual
Safety Precautions 0001
Do not open, service, or change any component.
0001
Only qualified technical specialists are allowed to service the equipment.
0001
Observe safety precautions to avoid electric shock
0001
Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment.
Page 25 of 31
Diamond Multimedia WR300NSI User Manual
Technical Support Diamond Technical Support staff is here to help resolve any issues that you may be experiencing. Prior to contacting technical support please make sure you have the following information available. 1. 2. 3. 4. 5. 6.
Model #: (Printed on the bar code, located on the box) Installation CD Version: (printed on the CD label) The version of Windows that your system is running. The manufacturer and model # of your computer. CPU type and speed (example: Intel Pentium4 2.4GHZ) A complete description of the problem that you are experiencing including any steps that you have taken to try to resolve the issue. Technical Support Options Free Telephone Support 818-357-5165 (long distance rates may apply) Mon - Fri, 8 - 4:30 PST http://www.diamondmm.com
Page 26 of 31
User Manual
SHIPPING Starting June 1st 2009 Diamond Multimedia will pay for shipping cost from Diamond back to US and Canadian customers provided the product is indeed under warranty and there is no damage caused by improper installation or modification of the merchandise. Customers located outside of the United States and Canada or using military addresses (APO,etc) will be required to pay for return shipping. Average shipping times range from 5 to 10 days, depending on actual shipment destination. Shipments made outside the US may take longer to deliver. Diamond Multimedia reserves the right to claim for shipping fees along with service charges for any product that is returned incomplete or not under warranty. Return Authorization ( RMA ) is required for all warranty return products. ONE YEAR LIMITED WARRANTY The warranty described below is extended only to the original buyer and is not transferable. Diamond warrants to the original purchaser of the hardware product, that the product is free from defects in materials or workmanship under normal use and service for a period of one (1) year from the date of purchase. All cables and accessories provided with a Diamond product are warranted to be free from defects in materials or workmanship under normal use and service for a period of for (90) ninety days from date of purchase. Diamond’s sole obligation under this warranty shall be, at Diamond’s option, to: (I) repair the defective product or parts; (II) deliver to customer an equivalent product or part to replace the defective product. When a product or part is replaced or exchanged, that item becomes the customer’s property and the replaced or exchanged item becomes Diamond’s property. When a refund or replacement product is given, the defective product becomes Diamond’s property. Replacement parts or products may be new or include serviceable used parts with at least the same functional equivalence to the original product. If, at the time of repair, a product is 'out of warranty' or within the last ninety (90) days of the warranty period, Diamond warrants any repair for ninety (90) days. All software provided is subject to the terms of the associated software end-user license agreement. WARRANTY EXCLUSIONS AND LIMITATIONS TO BE ELIGIBLE FOR THIS WARRANTY, YOU NEED TO PROVIDE THE ORIGINAL SALES RECEIPT SHOWING THE DATE OF PURCHASE OF THE PRODUCT. DIAMOND MAY REQUEST THE ORIGINAL SALES RECEIPT OR A COPY AS PROOF OF THE DATE OF PURCHASE. Diamond does not warrant third party products which Diamond distributes 'AS IS' unless otherwise specified. Third party products may be warranted by the third party. Diamond makes no warranty or representation that: (I) the operation of the product will be uninterrupted or error free; (II) defects in the product will be corrected; or (III) that the product will meet Customer’s requirements or work in combination with any hardware or software provided by third parties. TO THE FULLEST EXTENT ALLOWED BY LAW, THE WARRANTIES, REMEDIES AND LIMITATIONS CONTAINED HEREIN ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, TERMS OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, WARRANTIES, TERMS OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUALITY, CORRESPONDENCE WITH DESCRIPTION AND NON-INFRINGEMENT, ALL OF WHICH ARE EXPRESSLY DISCLAIMED. DIAMOND WILL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE PRODUCT OR SOFTWARE DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PARTY’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO OPEN, REPAIR OR MODIFY THE PRODUCT OR SOFTWARE, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD. THIS WARRANTY WILL NOT APPLY TO PRODUCTS USED FOR NUCLEAR RELATED, WEAPONS RELATED, MEDICAL OR LIFE SAVING PURPOSES.
Page 27 of 31
Diamond Multimedia WR300NSI User Manual
TO THE FULLEST EXTENT ALLOWED BY LAW, DIAMOND ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF DIAMOND, ITS SUPPLIERS OR ITS RESELLER HAS BEEN ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. DIAMOND’S SOLE LIABILITY WITH RESPECT TO ITS PRODUCT IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AT DIAMOND ’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL FOR ESSENTIAL PURPOSE. DISCLAIMER: Some jurisdictions may not allow the exclusion or limitation of incidental or consequential damages for products supplied to consumers, or the limitation of liability for personal injury, so the foregoing limitations and exclusions may not apply or may be limited in their application to you. When implied warranties are not allowed to be excluded in their entirety, they will be limited to the duration of the applicable written warranty. This warranty gives you specific legal rights that may vary depending on the law of the applicable jurisdiction. OBTAINING WARRANTY SERVICE: Please review the 'help' resources referred to in your products accompanying documentation before seeking warranty service. If the product is still not functioning properly after making use of these resources, please access the support page at http://www.diamondmm.com/support.php for warranty instructions and services. Some additional charges may apply for phone support.
Page 28 of 31
User Manual
FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•
Consult the dealer or an experienced radio or television technician for help.
Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Diamond Multimedia could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1.
This device may not cause harmful interference, and
2.
This device must accept any interference received, including interference that may cause undesired operation.
Exposure Information to Radio Frequency Energy This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.
Page 29 of 31
Diamond Multimedia WR300NSI User Manual
© Copyright 2010 All rights reserved. No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission. We reserve the right to revise this document at any time without the obligation to notify any person and/or entity. All other company or product names mentioned are used for identification purposes only and may be trademarks of their respective owners. LIMITATION OF LIABILITY AND DAMAGES THE PRODUCT AND THE SOFTWARES WITHIN ARE PROVIDED 'AS IS,' BASIS. THE MANUFACTURER AND MANUFACTURER’S RESELLERS (COLLECTIVELY REFERRED TO AS “THE SELLERS”) DISCLAIM ALL WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR ANY WARRANTIES ARISING FROM COURSE OF DEALING, COURSE OF PERFORMANCE, OR USAGE OF TRADE. IN NO EVENT WILL THE SELLERS BE LIABLE FOR DAMAGES OR LOSS, INCLUDING BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL WILLFUL, PUNITIVE, INCIDENTAL, EXEMPLARY, OR CONSEQUENTIAL, DAMAGES, DAMAGES FOR LOSS OF BUSINESS PROFITS, OR DAMAGES FOR LOSS OF BUSINESS OF ANY CUSTOMER OR ANY THIRD PARTY ARISING OUT OF THE USE OR THE INABILITY TO USE THE PRODUCT OR THE SOFTWARES, INCLUDING BUT NOT LIMITED TO THOSE RESULTING FROM DEFECTS IN THE PRODUCT OR SOFTWARE OR DOCUMENTATION, OR LOSS OR INACCURACY OF DATA OF ANY KIND, WHETHER BASED ON CONTRACT, TORT OR ANY OTHER LEGAL THEORY, EVEN IF THE PARTIES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE PRODUCT OR ITS SOFTWARE IS ASSUMED BY CUSTOMER. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABLITY FOR DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO THE PARTIES. IN NO EVENT WILL THE SELLERS’ TOTAL CUMULATIVE LIABILITY OF EACH AND EVERY KIND IN RELATION TO THE PRODUCT OR ITS SOFTWARE EXCEED THE AMOUNT PAID BY CUSTOMER FOR THE PRODUCT.

Page 30 of 31
User Manual
Page 31 of 31
Diamond Multimedia WR300NSI User Manual
Page 2 of 31
User Manual
Table of Contents About the Device .................................................... 4 Minimum System Requirements ................................. 5 Package Contents ............................................ 5 Device Overview ............................................. 6 Front Panel ........................................................ 6 Top Panel.......................................................... 7 Bottom Panel ...................................................... 8 Accessing the User Interface ........................................... 9 Quick Connect ............................................... 9 Setup ..................................................... 10 Wireless ................................................... 11 Wireless Basic Settings ..............................................11 Wireless Security Settings ...........................................12 MAC Filter Settings.................................................13 System .................................................... 15 Device Information .................................................15 LAN Configuration ..................................................16 Configuration Settings ..............................................16 Firmware Upgrade .................................................17 System Password ..................................................17 Configuring the Device ............................................... 19 Wireless Repeater ........................................... 20 Wireless Access Point ........................................ 21 Wireless Bridge............................................. 22 Configure WR300NSI to Wireless Router via WPS .........................24 FCC Notice ......................................................... 29
Page 3 of 31
Diamond Multimedia WR300NSI User Manual
About the Device Diamond Multimedia WR300NSI is a Wall-plugged 300Mbps Wireless-N Repeater, which supports wireless 8 0 2 . 1 1 b /g/n, and one 10/100 Base-T Ethernet port. Repeat and Ex Extend the WiFi Network WR300NSI supports robust 802.11n technology with up to 300Mbps data transfer rate. The extender can take an existing 802.11n wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach. It eliminates the cable wires while providing the same reliable network connection. It can repeat and extend the wireless signal from virtually any 802.11n wireless router or access point that is launched on the market. It is backwards compatible with the 802.11b/g router or access point. Make Wired Network WiFi Ready The extender is equipped with 1 x 10/100M Auto MDI/MDIX LAN port that can be used to connect to an existing wired network to serve as a wireless interface. It can also be used to configure the extender via its web-based GUI, or upgrade the firmware. MIMO Technology The device is designed with MIMO technology, which successfully reduces “dead spot”, and extends network coverage within a home or in the building. Advanced Security WR300NSI features with 64/128-bit WEP encryption and WIFI Protected Access (WPA), WPA2 to ensure the network security and prevent unauthorized access to you network. Port ortable without the Need of Externa xternal Power Supply The device is easy to setup. It is portable with no need of any external power adaptor. It comes with the embedded power supply and power plug, so that users can just plug the device into a power socket.
Page 4 of 31
User Manual
Minimum System Requirements Your computer must meet the following minimum requirements. 0001 Any operating system can be used 0001 Web Browser 0001 233MHz processor 0001 Ethernet network adapter 0001 Or Wireless network adapter
Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents may vary for different models. 0001 0001 0001 0001
WR300NSI Ethernet cable Easy Start Guide Resource CD
Page 5 of 31
Diamond Multimedia WR300NSI User Manual
Device Overview
Front Panel
Page 6 of 31
User Manual
LABEL
STATE
DESCRIPTION
3 BARS
Connected
95% and above RSSI (Excellent)
2 BARS
Connected
55-94% RSSI (Recommended)
1 BAR
Connected
10-54% RSSI (Weak)
LED RRSI
Top Panel
LABEL WPS BUTTON
DESCRIPTION Connect WR300NSI to any WPS capable devices
Page 7 of 31
Diamond Multimedia WR300NSI User Manual
Bottom Panel
LABEL
DESCRIPTION
RESET
Press the Reset button for 5 seconds to restore the device to default factory settings
ETHERNET PORT
Connect to computers/Ethernet devices
Page 8 of 31
User Manual
Accessing the User Interface To access the User Interface open a Web browser (Ex: Internet Explorer, Firefox or G.chrome) and type http://10.0.10.254 in the address bar and press enter.
Quick Connect Press Quick Connect icon to scan for available wireless within the area.
Page 9 of 31
Diamond Multimedia WR300NSI User Manual
Setup
Mode of Operation Repeater Configure your device as a wireless repeater to extend the wireless coverage of your wireless router. Access Point Configure your device as an access point to provide wireless network accessibility to a non wireless network Bridge Configure your device as a Bridge to act as wireless client to your network device. In this mode you can convert wireless signal to wired Ethernet for devices not supporting wireless connections.
SSID Here you can set the name of your wireless network. Select the option Disable on Broadcast SSID allow you to hide the wireless network name.
Security Mode Select from different encryption type on the list to be used to provide security to your wireless network from unauthorized users. Select WEP HEX 64bit – uses 10 characters length of password from A-F and numbers from 0-9 128bit- uses 26 characters length of password from A-F and numbers from 0-9
Page 10 of 31
User Manual
ASCII 64bit – uses 5 characters alpha numeric password (A-Z and 0-9) 128bit – uses 13 characters length of password from (A-Z and 0-9) WPA Uses strong encryption, some legacy devices may not be able to associate with this type of encryption WPA2 Use this encryption for best security, some legacy device may not associate with this type of encryption WPA/WPA2 PSK Use a balance of strong security and best compatibility for new and legacy devices.
Wireless Wireless Basic Settings
Enable Wireless Enable or Disable wireless capability Broadcast SSID Set option to disable to hide your wireless network (Enable by default)
Page 11 of 31
Diamond Multimedia WR300NSI User Manual
SSID Here you can enter the name of your wifi network Wireless Mode This option allows you to select the type of wireless standard you want to allow to connect to your wireless network. Channel Channel Change your wireless channel when you are getting poor reception. Choose the least channel used in your area for better performance (Only applicable for AP mode) Channel Bandwidth Here you can set your Channel Bandwidth to 20MHz and 20/40MHz(Auto) HT Data Data Rate and HT Guard Interval These options are recommended to be set to Auto for maximum efficiency.
Wireless Security Settings
Security Mode Select the type of encryption you want for your wireless network WPS Set this option to enable or disable WPS (Wifi Protected Setup) feature on this device Enrollee PIN Enter this PIN to wireless client that will be connecting to WR300NSI repeater to automatically configure the wireless device. Registrar PIN
Page 12 of 31
User Manual
Here you can enter the WPS-PIN of wireless clients and click apply for the WR300NSI to allow access and configure your wireless client device automatically Note: WPS will work only for WPA-PSK, WPA2-PSK and WPA/WPA2 encryption. Wireless client should support WPS feature to use this option.
MAC Filter Settings This feature will provide additional protection to your wireless network. It allows or denies wireless clients from accessing through the WR300NSI with the use of the MAC address which is unique for every network devices.
Policy Disable Disable Use this option to disable or disregard the list of MAC address from blocking or allowing access to the wireless network. Allow Allow the list of MAC address from accessing the wireless network Deny Deny the list of MAC address form accessing the wireless network
Page 13 of 31
Diamond Multimedia WR300NSI User Manual
MAC Address Type the MAC address of the wireless client here and press
to add on the list.
Removing MAC address from the list Press this icon to remove the MAC address from the list
Where can I find the MAC address of my wireless wireless client? On the Command Prompt type ipconfig/all to show all the network adapter(s) that are available.
Page 14 of 31
User Manual
System Device Information
Firmware Version Shows the current firmware version of the device Build Date Shows the date when firmware is created Serial Number Shows the device’s serial no ETH/Bridge and Wireless MAC address Shows the MAC address of the different Interface Wireless Status Shows the wireless device’s wireless status
Page 15 of 31
Diamond Multimedia WR300NSI User Manual
LAN Configuration
Device IP address Shows the device’s current IP address Note: Change this IP address if you are using two WR300NSI on the same network to avoid IP address conflict within your network. You may configure the 2nd unit with IP address ex: 10.0.10.253
Configuration Settings
Backup Settings Settings Allow you to save the current configuration of WR300NSI. Default file name for the backup file will be “RT2880_Settings.dat”. Click Apply to start saving your configuration.
Page 16 of 31
User Manual
Update Here you can load the saved configuration of your WR300NSI. Click browse and load the saved settings by clicking on the apply button. Restore Click on the apply button to reset the unit back to its factory settings. Unsaved information will be lost.
Firmware Upgrade This option allows you to update the firmware of your device for future changes and enhancement.
Updating the firmware a. b. c. d.
Connect an Ethernet cable between WR300NSI and computer Open web browser and type http://10.0.10.254 to access the user interface Click on Setup and select firmware under the sub menu Click on the Browse button and locate and open the firmware for WR300NSI and click Apply to start the update.
Note: It is recommended to only use firmware which is officially release by Diamond Multimedia, Using third party firmware will void the warranty of the device.
System Password Set a password on web user interface to prevent other users from getting access to the web UI and avoid unwanted changes from your settings.
Page 17 of 31
Diamond Multimedia WR300NSI User Manual
System Password Type your password and click on apply to activate this feature. To disable, simply remove the password and click apply to save your settings. Note: forgotten password will not be recovered. Reset the device pressing the reset button found beside the Ethernet port of WR300NSI.
Page 18 of 31
User Manual
Configuring the Device Placement of the Wireless Repeater is crucial to get the best possible results for extending your existing wireless signal. It is ideal for the wireless repeater to be placed in a location where it can receive good wireless signal from the wireless router/AP so as to avoid disconnection and packet loss.
LED smart indicator determines the signal strength from your wireless router. Wireless reception and throughput may vary according to the number of wireless clients that are in use at the same time, other nearby wireless devices, structure type, building materials and other interference present.
Page 19 of 31
Diamond Multimedia WR300NSI User Manual
Wireless Repeater a. Plug your WR300NSI to a power outlet, switch it ON and connect the Ethernet cable between your WR300NSI and Computer b. Launch web browser and you will be directed to the User Interface (In case it does not open type 10.0.10.254 and hit enter)
c. Select your SSID (wireless network/wifi name) from the list and click connect
Page 20 of 31
User Manual
d. Type the password for the wireless network of your router and click apply. The WR300NSI will reboot and will redirect to the user interface with the following status.
e. Disconnect the Ethernet cable from WR300NSI and computer then place the device at the location, where it can get sufficient reception from your wireless router.
SETUP DIAGRAM (REPEATER)
Wireless Access Point Setup your WR300NSI as an access point to provide wireless network to router that doesn’t have wireless feature.
Page 21 of 31
Diamond Multimedia WR300NSI User Manual
a. b. c.
Plug your WR300NSI to a power outlet Connect an Ethernet cable between the WR300NSI and Computer Launch web browser and you will be directed to the User Interface
d. . f. g.
Go to Setup, set Mode of Operation to Access Point Type the name of your wireless network under SSID Type the password of the wireless network and click apply Connect the WR300NSI to router’s LAN port after the settings have been saved.
SETUP DIAGRAM (AP)
Wireless Bridge Connect wired devices to your wireless network by connecting an Ethernet cable from a wired device, such as a Desktop PC, Game Console or Internet-ready LCD TV, to the Ethernet port of the WL556E. Page 22 of 31
User Manual
a. Plug in and turn ON your WR300NSI b. Connect the Ethernet cable between your computer and WR300NSI c. Launch a web browser. You will be directed to the user interface
d. Click on Setup and set Mode of Operation to Bridge e. Type the name of your wireless network for the SSID f. Enter the channel and password of your wireless network and click apply Note: SSID, Security mode, password/passphrase and wireless channel must match to router’s wireless settings.
SETUP DIAGRAM (BRIDGE)
Modem
WR300NSI Wireless Router
WPS WPS or Wifi Protected Setup makes it easier for you to connect your WR300NSI to your wireless router and WR300NSI to your wireless devices with a push of a button. (WPS
Page 23 of 31
Diamond Multimedia WR300NSI User Manual
feature must be enabled and must be supported on the wireless router and wireless devices that will be connected to WR300NSI)
Configure WR300NSI to Wireless Router via WPS a. Press the WPS button of WR300NSI for 5 seconds b. Press the WPS button on your router for 2 seconds within 2 minutes time
Page 24 of 31
User Manual
Safety Precautions 0001
Do not open, service, or change any component.
0001
Only qualified technical specialists are allowed to service the equipment.
0001
Observe safety precautions to avoid electric shock
0001
Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment.
Page 25 of 31
Diamond Multimedia WR300NSI User Manual
Technical Support Diamond Technical Support staff is here to help resolve any issues that you may be experiencing. Prior to contacting technical support please make sure you have the following information available. 1. 2. 3. 4. 5. 6.
Model #: (Printed on the bar code, located on the box) Installation CD Version: (printed on the CD label) The version of Windows that your system is running. The manufacturer and model # of your computer. CPU type and speed (example: Intel Pentium4 2.4GHZ) A complete description of the problem that you are experiencing including any steps that you have taken to try to resolve the issue. Technical Support Options Free Telephone Support 818-357-5165 (long distance rates may apply) Mon - Fri, 8 - 4:30 PST http://www.diamondmm.com
